| AM81xx | Synchronous Servomotors for compact drive technology
|
|

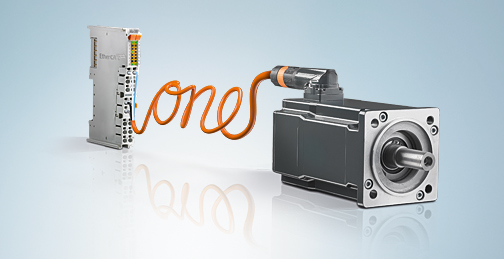

The servomotors from the AM81xx series are suitable for operation on the EL7201 servo terminal. The motors can be equipped with the One Cable Technology (OCT). Homing is no longer necessary thanks to the integrated absolute encoder. The position of the drive is saved in the EEPROM, which is ideal for an adjustable axes. The encoder data are transferred fully digitally to the EL7201-0010 via the motor cable, allowing the encoder cable to be dispensed with.
Options such as a backlash-free permanent magnet holding brake, a rotary shaft seal or a feather key groove are available on request. The motors are equipped with a sturdy rotary resolver encoder and have been developed with a generously dimensioned bearing for general mechanical engineering.
Technical data AM81xx
Motor type permanent magnet-excited three-phase synchronous motor
Magnet material neodymium-iron-boron
Insulation system thermal class F (155 ºC)
Design form flange-mounted according to IM B5, IM V1, IM V3
Protection class IP 54, IP 65 (shaft seal)
Cooling convection, permissible ambient temperature 40 ºC
Coating/surface dark grey powder coating, similar to RAL7016
Connection method round plug connector, swivelling, angled
Life span L10h = 30,000 hrs for ball bearings
Approvals CE, UL
Feedback system resolver, OCT
Options AM81xx
Feather key groove according to DIN 6885 P1
Holding brake backlash-free permanent magnet single-surface brake, suitable only as holding brake
Shaft seal radial shaft seal made of FPM
Feedback system option absolute encoder multi-turn |
|
